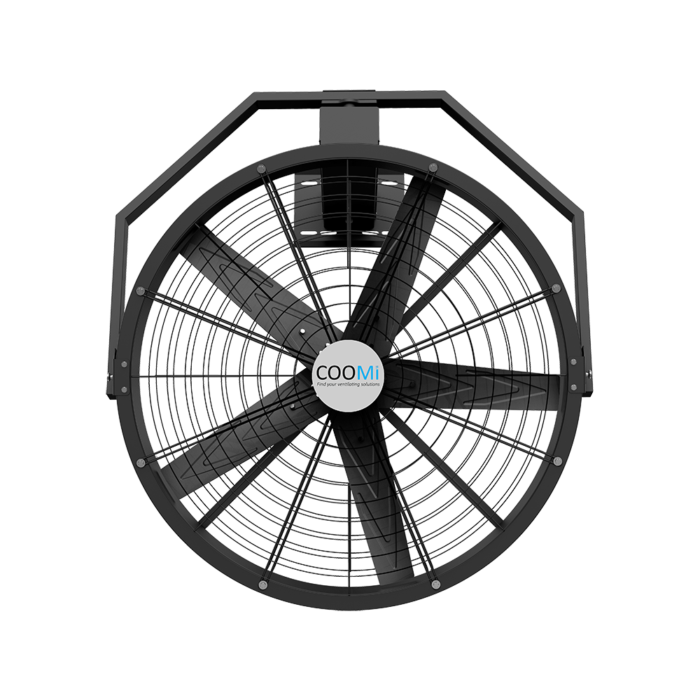

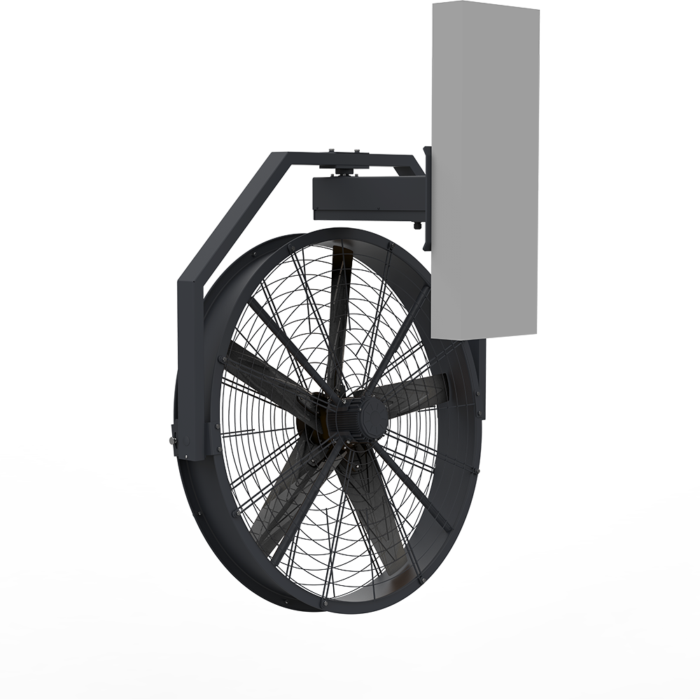

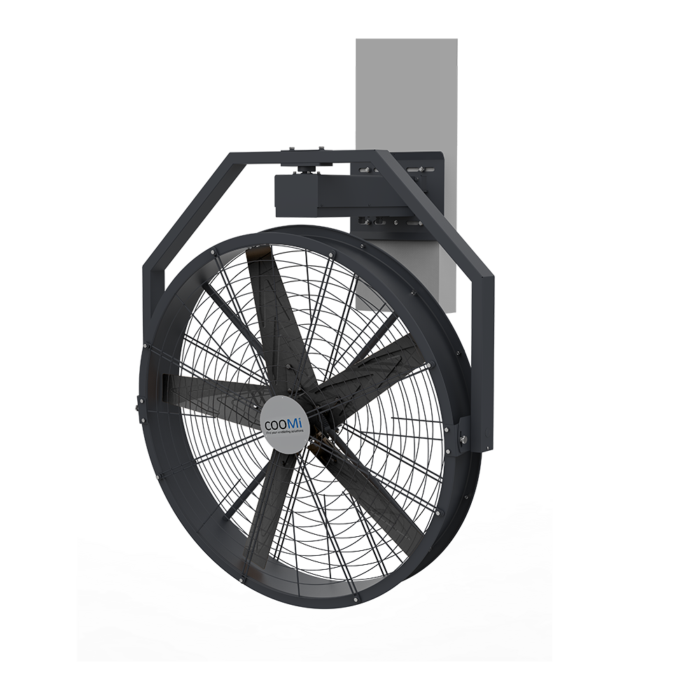

Spiderfan Series Wall Fan
Tailored to address intricate environments unsuitable for installing large industrial ceiling fans, our customized Spiderfan is equipped to handle challenges such as ceiling structure, load-bearing capacity, and the presence of cranes. Specifically designed for spaces where the installation of industrial ceiling fans is less than ideal, it serves as a new solution for effective space ventilation and personnel cooling. Additionally, this fan is compliant with CE and features IP55, making it suitablefor industrial plants, logistics warehouses, waiting rooms, exhibition halls, gymnasiums, large shopping malls, and other expansive areas.
Model | Spiderfan 120-5 |
Diameter (m) | 1.20 |
Power (kW) | 0.55 |
Horsepower (HP) | 0.75 |
Voltage (V) | 380/220 |
Frequancy (Hz) | 50/60 |
Air Volume(m3/min) | 1167 |
Roatating speed (rpm) | 450 |
Number of blades | 5 |
Noise (dB) | ≤45 |
Net Weight (kg) | 51 |
